3.81mm / 0.15" Single Row PCB Screw Terminal Blocks Connector

Product Categories

Shenzhen Jetacon Technology Limited

Contact Now

Name: 381mm 015quot Single Row PCB Screw Terminal Blocks Connector
Brand: Jetacon
Price: 1 USD

Place of Origin : Guang Dong

Brand Name : Jetacon

Certification : UL, CE

Model Number : EC201-02-3.81

MOQ : 500 pieces

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T, L/C, Paypal, Payoneer

Supply Ability : 1KK poles monthly

Type : Extension Socket

Grounding : Non-Grounding

Application : Industrial

Contact Now

Specifications:

Condition: Brand New

Certification: CE, Rohs

Pitch: 3.81mm

Poles: 3 Pins or 2 Pins

Color:Green

Torque: 0.2Nm

Strip length: 5-6mm

Rated voltage: 300V

Rated current: 10A

Insulation resistance: 5000MΩ/1000V

Contact resistance: 20mΩ

Withstanding voltage: 2000V/1min

Wire range: 28~12AWG

Note:

The terminal blocks are in stock from 2 poles to 24 poles

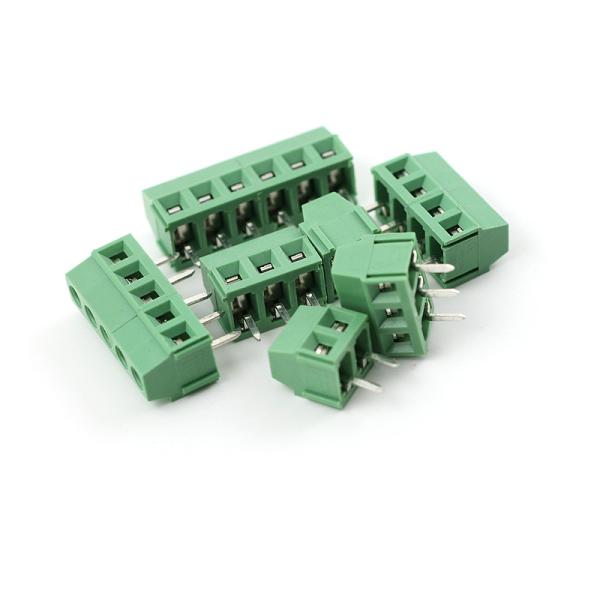

3.81mm / 0.15" Single Row PCB Screw Terminal Blocks Connector Images
